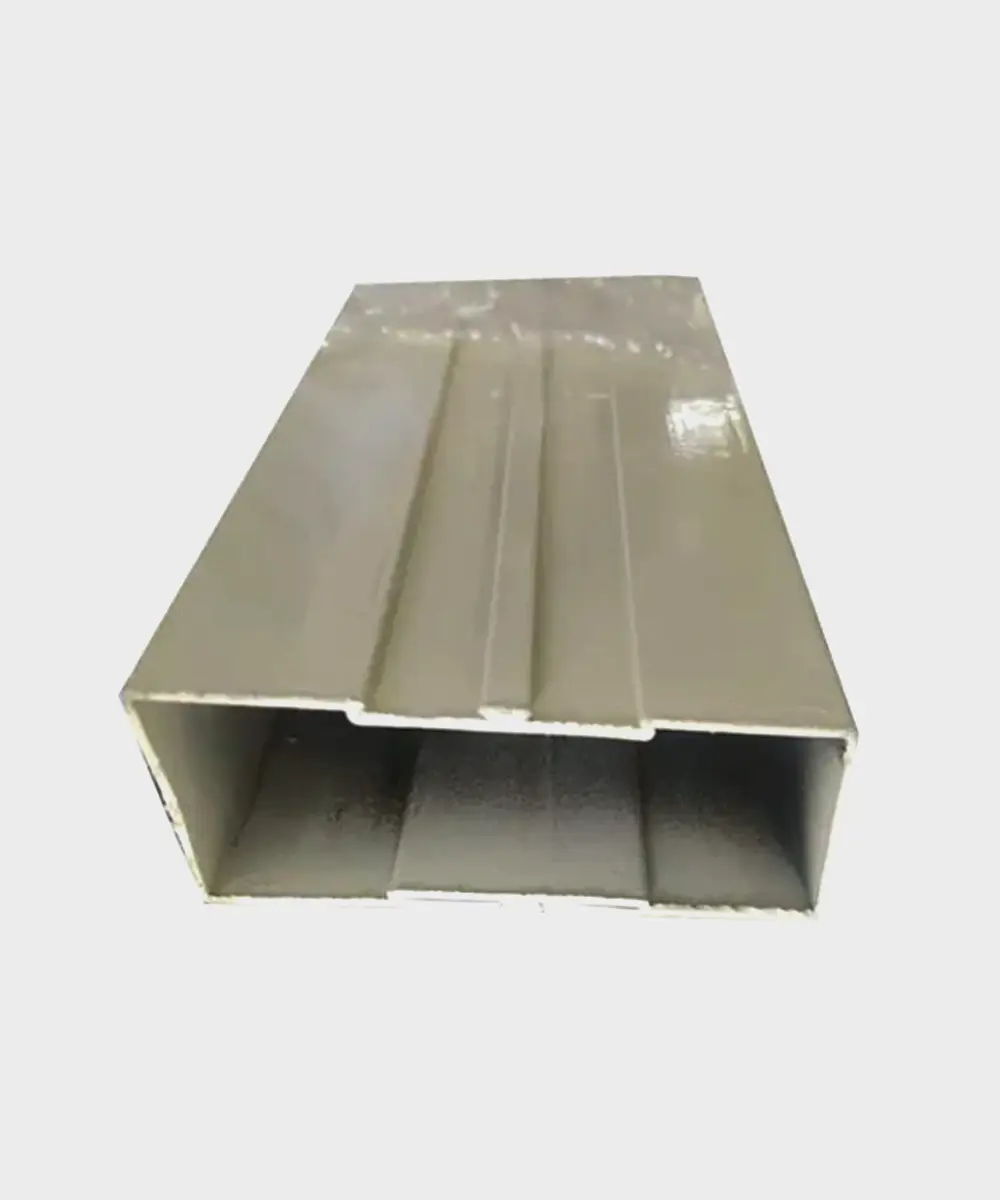

Double Glazing Aluminium Profile
₹250.00
Note* – Prices are subject to change based on current market rates and other factors; for the latest pricing, please contact us.
High-performance Double Glazing Aluminium Profile for window and façade systems — engineered for thermal efficiency, robust sealing, and precise fit. Ideal for residential and commercial double-glazed installations.
For current price, product specifications, technical details, or certification-related queries, please connect with our support team.
📞 Call Customer Service: +91 9350507754
| Specification | Details |
|---|---|
| Product Name | Double Glazing Aluminium Profile |
| Material | Aluminium (Grade A, 6000-series typical) |
| Profile Type | Double glazing / IGU support extrusion |
| Typical Profile Depth | 50 mm – 120 mm (varies by system) |
| Glazing Rebate Width | Indicative: 20 mm – 28 mm (depends on IGU thickness) |
| Supported IGU Thickness | 6 mm – 28 mm (single/double glazed unit configurations) |
| Standard Length | 6.0 m (cut-to-length available) |
| Surface Finish | Mill finish / Anodized / Powder-coated (custom RAL colors) |
| Thermal Break Option | Available (polyamide thermal barriers) |
| Colour Options | Natural silver (standard), custom powder-coat colours |
| Machining Options | Pre-drilling, notches, slots, cut-to-length, punching |
| Typical Applications | Double-glazed windows, doors, curtain walls, storefront systems |
| Minimum Order Quantity (MOQ) | Indicative: 150 kg |
| Indicative Price | Indicative: ₹230 / kg (subject to market rates) |
| Supply Capacity | Indicative: up to 80,000 kg / month |
| Delivery Time (Indicative) | 2–3 days for standard quantities (subject to order & location) |
| Packaging | Bundled, protected with film and end caps to prevent damage |
| Quality & Inspection | Extrusion tolerances checked, material verification, visual finish inspection |
| Domestic Market | Pan India supply and technical support |
Q2: What IGU thicknesses does this profile support?
Typical profiles support insulating glass units from about 6 mm up to 28 mm, depending on the profile design. Confirm the required glazing rebate and IGU thickness when specifying the profile.
Q3: Are thermal breaks available with these profiles?
Yes. For improved thermal insulation and reduced heat transfer, profiles can be supplied with polyamide thermal breaks or designed to integrate thermal barrier systems.
Q4: Which finishes are offered and which should I choose for outdoor use?
Finishes include mill finish, anodized and powder-coated (custom RAL colours). For outdoor and coastal exposures, anodized or polyester powder-coating with appropriate pretreatment is recommended for enhanced corrosion resistance.
Q5: Can these aluminium profiles be customized for my project?
Absolutely. Auto Tech Industry provides cut-to-length services, pre-drilling, notching and custom punching to match installation requirements. Custom color and surface treatments are also available.
Q6: How do I ensure the profile meets weatherproofing and acoustic needs?
Match the profile’s glazing rebate and gasket details to the IGU and sealing system. Our technical team can advise on gasket selection, drainage provisions and thermal break options to meet specific weatherproofing and acoustic targets.
Q7: What lead times and order quantities should I expect?
Indicative MOQ is 150 kg. Standard lead times are typically 2–3 days for regular stock quantities; larger or custom orders may require planned production and shipment schedules based on project scale.
